Launch CNC 602A Fuel Injector Cleaner Machine Auto Fuel Injector
Tester With Ultrasonic Cleaner
Launch CNC 602A Auto Fuel Injector Tester and Cleaner Introduction:
CNC-602A is an advanced electromechanical product, which can clean
and test injectors by simulating engine working conditions. It can
also perform cleaning on the injectors and fuel supply system on
vehicle.
Launch CNC 602A Auto Fuel Injector Tester and Cleaner Feature:
* Ultrasonic cleaning: To perform simultaneous cleaning on several
injectors and to remove the carbon deposits on the injector
completely.
* Uniformity/Sprayability test: To test the uniformity of injecting
amount of each injector, and to monitor the spraying status of each
injector with the help of backlight. This test is also for reverse
flush.
* Leakage test: To test the sealing and dribbling conditions of
injectors under system pressure.
* Injecting flow test: To check the injecting amount of the
injector in 15 seconds of constant injection.
* Auto. test: To test injectors by simulating different working
conditions.
* On-vehicle cleaning: The unit is equipped with various adaptors
and couplers that facilitate cleaning on the injectors on vehicle.
Launch CNC 602A Auto Fuel Injector Tester and Cleaner Specification:
* Power supply: AC220V±10%, 50/60Hz AC110V±10%, 50/60Hz.
* Input power: 250W;
* Ultrasonic cleaner power: 100W;
* Simulated RPM range: 10~9990rpm; step: 10rpm;
* Time range: 1~9999s;
* Pulse width: 0.5~25ms; step 0.1 ms;
* Fuel tank capacity: 4700ml;
* Dimensions: 385mm x 410mm x 500mm;
* Weight: About 45kg

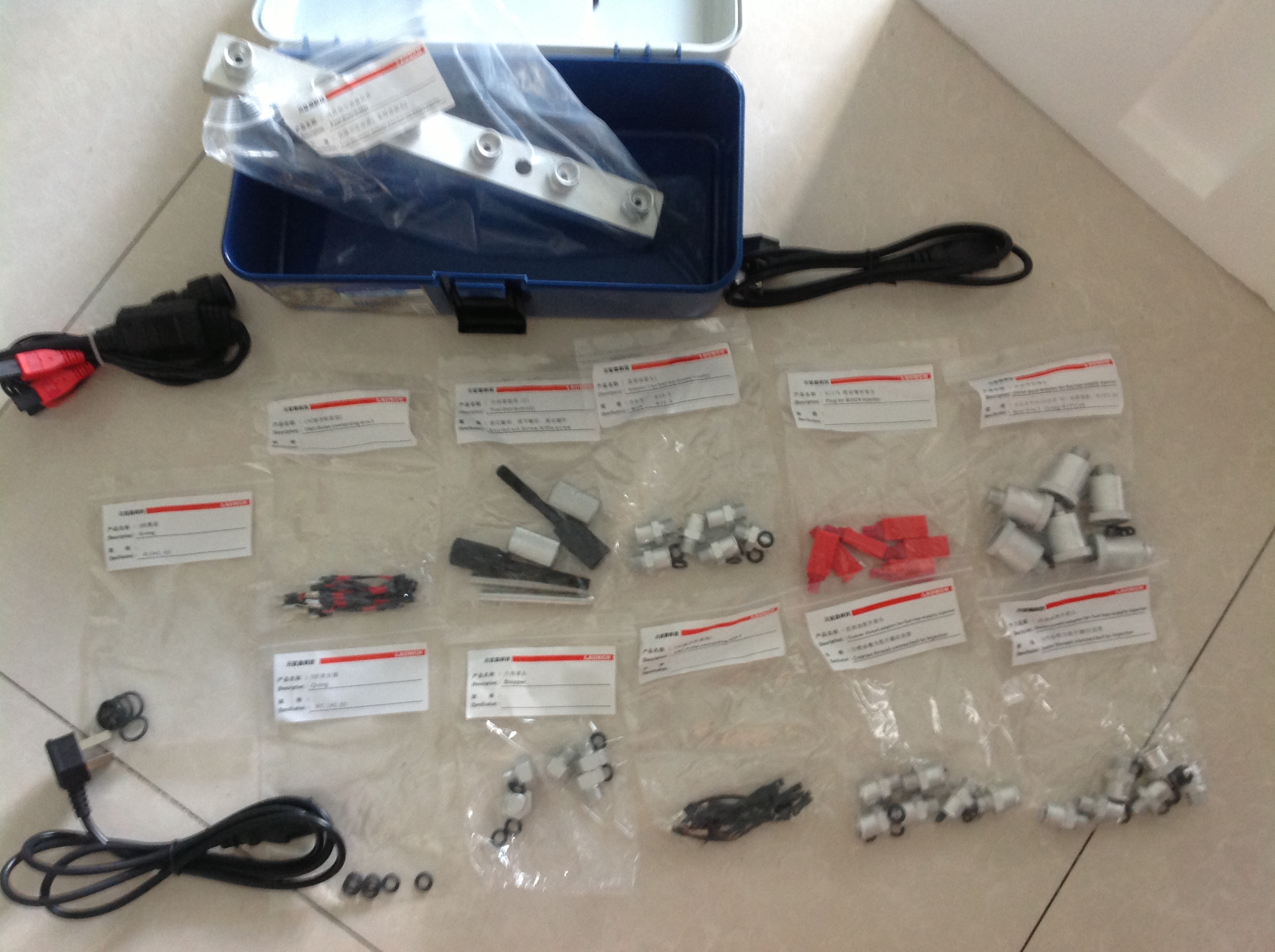

Launch CNC 602A Auto Fuel Injector Tester and Cleaner Spare Parts:
1, CNC pulse signal connection cable 1,T=0.5
2, CNC pulse signal connection cable 2,T=0.8
3, Ultrasonic cleaner assembly 100W
4, On-vehicle adaptor package(tool kits)
5, CNC-602A user manual(En&Ch)
6, Top-supply connector 1
7, Swiss thread adaptor for fuel top-supply injector
8, Coarse thread adaptor for fuel top-supply injector
9, CNC-601/801 Hexangular stopper
10, CNC-801 BUICK injector adaptor
11, Injector testing liquid
12, Injecter detergent
Launch CNC 602A Auto Fuel Injector Tester and Cleaner pictures:
