    Handheld ECU Programmer , DS17 Tricore Boot Reader

    Ask Lasest Price
    Brand Name : DS17 Tricore Boot Reader
    Model Number : DS17 Tricore Boot Reader
    Delivery Time : Within 1-2 working day upon receipt payment
    Payment Terms : T/T, , MoneyGram, paypal
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

    Handheld ECU Programmer , DS17 Tricore Boot Reader

    Handheld ECU Programmer , DS17 Tricore Boot Reader

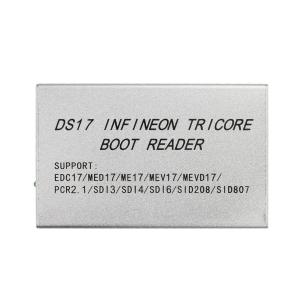

    DS17 Tricore Boot Reader is an updated version for BDM100, it takes direct access on processor and EPROM memory of the ECU over a dedicated port like the BDM system.


    DS17 Tricore Boot Reader

    Kindly Note:
    1.This item can only work with our softwares.
    2.It can't be updated.

    DS17 Tricore Boot Reader Description:

    1.Commonly named as bootmode this port is the pendent to the Motorola/Freescale BDM port. In contrast to the BDM port, whose pins only have this purpose, the bootmode is done over one of the CAN busses of the processor.

    2.The new assembled ECUs are programmed over this port, so Bosch has put it on a 14 pin pad array. It looks like the BDM port but works completely different.

    3.To put the processor into the bootmode a modification on the printed circuit board is necessary. This modification depends on the type of the processor and so the type of the ECU. In the most simple case one pin of the processor must be connected to ground. Therefore a contact needle with a wire and a tripod is attached to the system.

    4.The power is also supplied over the probe, but is spite to the BDM system the voltage is not manually switchable but automatically controlled by the DS17.

    DS17 Tricore Boot Reader Support:

    EDC17/MED17/ME17/MEV17/MEVD17/PCF2.1/SD13/SD14/SD16/SID208/SID807

    Here you can see a list of cars, which are successfully tested at DS17 Tricore Bott Reader:

    CarECU
    ManufacturerTypeVersionManufacturerType
    Alfa-RomeoJulietta1750 TBIBoschMED17
    AudiA31.4L TSIBoschMED17.5.5
    AudiA31.4L TSIBoschMED17.5.20
    AudiA31.8L TFSIBoschMED17.5
    AudiA32.0L TDI CRBoschEDC17CP14 INTERN
    AudiA32.0L TDI CRBoschEDC17C46
    AudiA32.0L TFSIBoschMED17.5
    AudiA41.8L TFSIBoschMED17.5
    AudiA42.0L TDI CRBoschEDC17CP14 INTERN
    AudiA42.0L TFSIBoschMED17.1
    AudiA52.0L TDI CRBoschEDC17CP20 HW31
    AudiA52.0L TFSIBoschMED17.1
    AudiA53.0L V6 TDIBoschEDC17CP14 HW02
    AudiA62.7L V6 TDIBoschEDC17CP14 EXTERN
    AudiQ52.0L TFSIBoschMED17.1
    AudiQ52.0L TFSIBoschMED17.5
    AudiQ53.0L V6 TDIBoschEDC17CP24
    AudiQ73.0L TDIBoschEDC17CP04 HW01
    AudiQ74.2L V8 TDIBoschEDC17CP24
    AudiRS5BoschMED17.1.1 HW03
    AudiTT2.0L TFSIBoschMED17.5
    BMW116i (E81)1.6LBoschME17.4.5
    BMW118d (E81)2.0L DBoschEDC17C06 DDE7.0
    BMW118i (E81)2.0LBoschME17.4.6
    BMW120d (E81)2.0L DBoschEDC17CP02 DDE7.1
    BMW120d (E82)2.0L DBoschEDC17CP02 DDE7.1
    BMW120d (E88)2.0L DBoschEDC17CP02 DDE7.1
    BMW120i (E81)2.0LBoschME17.4.6
    BMW120i (E88)2.0LBoschME17.4.5
    BMW123d (E81)2.0L DBoschEDC17CP02 DDE7.1
    BMW123d (E82)2.0L DBoschEDC17CP02 DDE7.1
    BMW316i (E90)1.6LBoschME17.4.5
    BMW318d (E90)2.0L DBoschEDC17C06 DDE7.0
    BMW318d (E91)2.0L DBoschEDC17C06 DDE7.0
    BMW318i (E90)2.0LBoschMEV17.4.6
    BMW318i (E91)2.0LBoschMEV17.4.6
    BMW320d (E90)2.0L DBoschEDC17CP02 DDE7.1
    BMW320d (E91)2.0L DBoschEDC17CP02 DDE7.1
    BMW320d (E92)2.0L DBoschEDC17CP02 DDE7.1
    BMW320d (E93)2.0L DBoschEDC17CP02 DDE7.1
    BMW320i (E90)2.0LBoschMEV17.4.6
    BMW320i (E91)2.0LBoschMEV17.4.6
    BMW320i (E92)2.0LBoschMEV17.4.6
    BMW320i (E93)2.0LBoschMEV17.4.6
    BMW325d (E93)2.5L DBoschEDC17CP09 DDE7.3
    BMW330d (E91)3.0L DBoschEDC17CP09 DDE7.3
    BMW535D (F11)3.0L DBoschEDC17C41
    BMW535GT (F07)3.0L DBoschEDC17CP09 DDE7.3
    BMW540i (F10)3.0L TurboBoschMEVD17.2
    BMWX1 (E84)1.8L DBoschEDC17C06 DDE7.0
    BMWX3 (E83) Facelift2.0L DBoschEDC17CP02 DDE7.1
    BMWX6 (E71)4.0L DBoschEDC17CP45
    BMW-MotorradS1000RR1.0LBoschME17.2
    CitroenC31.6L TurboBoschMEV17.4
    CitroenC41.6L TurboBoschMED17.4
    CitroenC51.6L TurboBoschMED17.4
    CitroenDS31.6 HDISiemensSID807
    FendtBoschEDC17CV52
    Fendt724BoschEDC17CV56
    SiemensSID208
    C-Max1.6 TDCISiemensSID807
    F-2506.7L TDIBoschEDC17CP05
    F-3506.7L TDIBoschEDC17CP05
    F-4506.7L TDIBoschEDC17CP05
    FocusSTBoschMED17.2.2
    MondeoBoschEDC17CP42
    HondaAccord2.2iCDTiBoschEDC17CP06
    Hyundaii251.4LBoschMEG17.9.12
    HyundaiTuscon, Santa Fe2.2 CDTiBoschEDC17CP14
    IvecoDaily3.0CRBoschEDC17CP52
    KiaMohave3.0DBoschEDC17CP14 INTERN
    KIASportage2.0 CRDIBoschEDC17C08
    Land RoverDefender2.2DSiemensSID208
    Land RoverDiscovery 4, Range Rover3.0DBoschEDC17CP11
    Land RoverEvoque2.0TBoschMED17.2-V4
    Mercedes-BenzA 180 (W169)2.0L CDIBoschEDC17C43
    Mercedes-BenzA 250 (W176)2.0L CGIBoschMED17.7.2
    Mercedes-BenzC 200 (W204)2.0L CDIBoschEDC17CP01
    Mercedes-BenzC, CL, CLS, E, S350, 500, 63BoschMED17.7.1
    Mercedes-BenzCLS, E350CDI, 450CDIBoschEDC17CP46
    Mercedes-BenzG65 AMGBoschMED17.7.8
    Mercedes-BenzSprinter319CDIBoschEDC17CP10
    Mercedes-BenzViano120CDIBoschEDC17CP10
    MiniOne1.6L TurboBoschMEV17.2.2
    MiniOne (R56)
    (0261S04158, 0261S04443)    		1.6L TurboBoschMED17.2-V1
    MiniOne (R56) (0261S04161)1.6L TurboBoschMED17.2-V2
    NissanQashqai1.6 DCIBoschEDC17C42
    OpelInsignia2.0L CDTiBoschEDC17C19
    Peugeot2071.6 HDISiemensSID807
    Peugeot2071.6L HDIBoschEDC17C10
    Peugeot2071.6L TurboBoschMED17.4
    Peugeot207 RC1.6L TurboBoschMED17.4
    Peugeot3081.6L TurboBoschMED17.4
    PolarisRZR-S800ccBoschM17.8.7
    PorscheCayenne3.0L V6 TDIBoschEDC17CP14 HW03
    PorscheCayenne4.8L V8 TurboSiemensSDI4
    PorscheCayenne II3.0L V6 TDIBoschEDC17CP44
    PorscheCayenne S4.8L V8SiemensSDI4
    PorscheCayman S3.4LSiemensSDI3
    PorschePanameraSiemensSDI6
    RenaultClio1.5 DCIBoschEDC17C42
    Sea-Doo JetskiRXT-iS 2601.5L SuperchargerBoschME17.8.5
    SeatAltea1.4L TSIBoschMED17.5.1
    SeatAltea1.4L TSIBoschMED17.5.5
    SeatAltea1.4L TSIBoschMED17.5.20
    SeatAltea1.8L TSIBoschMED17.5
    SeatBocanegra1.4L TSIBoschMED17.5.5
    SeatIbiza 41.4L TDIBoschEDC17U1
    SeatIbiza 41.9L TDIBoschEDC17U1
    SeatIbiza 42.0L TDI CRBoschEDC17C46
    SeatLeon 21.4L TSIBoschMED17.5.20
    SeatLeon 21.8L TSIBoschMED17.5
    SeatToledo 31.4L TSIBoschMED17.5.20
    SeatToledo 31.8L TSIBoschMED17.5
    SkodaOctavia 21.4L TSIBoschMED17.5.20
    SkodaOctavia 21.8L TSIBoschMED17.5
    SkodaSuperb 21.4L TSIBoschMED17.5.1
    SkodaSuperb 21.4L TSIBoschMED17.5.5
    SkodaSuperb 21.4L TSIBoschMED17.5.20
    SkodaSuperb 21.8L TFSIBoschMED17.5
    SkodaSuperb 22.0L TDI CRBoschEDC17CP14 INTERN
    SkodaYeti2.0L TDI CRBoschEDC17CP14 INTERN
    SkodaYeti2.0L TDI CRBoschEDC17C46
    ToyotaUrban Cruiser1.4L D4-DBoschEDC17CP07
    VolkswagenEOS1.4L TSIBoschMED17.5.20
    VolkswagenEOS2.0L TDI CRBoschEDC17CP14 INTERN
    VolkswagenEOS2.0L TSIBoschMED17.5
    VolkswagenGolf 51.4L TSIBoschMED17.5.1
    VolkswagenGolf 51.4L TSIBoschMED17.5.20
    VolkswagenGolf 52.0L TSIBoschMED17.5
    VolkswagenGolf 61.4L TSIBoschMED17.5.5
    VolkswagenGolf 61.4L TSIBoschMED17.5.20
    VolkswagenGolf 62.0L TDI CRBoschEDC17CP14 INTERN
    VolkswagenGolf 62.0L TSIBoschMED17.5
    VolkswagenGolf 62.5LBoschMED17.5
    VolkswagenJetta 31.4L TSIBoschMED17.5.20
    VolkswagenJetta 32.0L TDI CRBoschEDC17CP14 EXTERN
    VolkswagenJetta 32.0L TSIBoschMED17.1
    VolkswagenJetta 32.0L TSIBoschMED17.5
    VolkswagenJetta 32.5LBoschMED17.5
    VolkswagenPassat1.4L TSIBoschMED17.5.20
    VolkswagenPassat1.8L TFSIBoschMED17.5
    VolkswagenPassat2.0L TDI CRBoschEDC17CP14 INTERN
    VolkswagenPassat2.0L TSIBoschMED17.5
    VolkswagenPassat CC1.8L TFSIBoschMED17.5
    VolkswagenPassat CC2.0L TSIBoschMED17.5
    VolkswagenPhaeton3.0L V6 TDIBoschEDC17CP04 INTERN
    VolkswagenPoloGTIBoschMED17.5.5 HW02
    VolkswagenPolo, Golf 6, Passat, Caddy1.6TDI CRSiemensPCR2.1
    VolkswagenScirocco1.4L TSIBoschMED17.5.5
    VolkswagenScirocco1.4L TSIBoschMED17.5.20
    VolkswagenScirocco2.0L TDI CRBoschEDC17CP14 INTERN
    VolkswagenScirocco2.0L TSIBoschMED17.5
    VolkswagenTiguan1.4L TSIBoschMED17.5.1
    VolkswagenTiguan1.4L TSIBoschMED17.5.20
    VolkswagenTiguan2.0L TDI CRBoschEDC17CP14 INTERN
    VolkswagenTiguan2.0L TSIBoschMED17.5
    VolkswagenTouareg3.0L V6 TDIBoschEDC17CP04 INTERN
    VolkswagenTouareg3.0L V6 TDIBoschEDC17CP24
    VolkswagenTouareg II3.0L V6 TDIBoschEDC17CP44
    VolkswagenTouran1.4L TSIBoschMED17.5.1
    VolkswagenTransporter T62.0L TDI CRBoschEDC17CP20 HW31
    VolkswagenVento2.0L TDI CRBoschEDC17CP14 INTERN
    VolvoBoschEDC17CP01
    VolvoBoschEDC17CP22
    VolvoD21.6DSiemensSID807
    VolvoXC602.4 D5BoschEDC17CP48

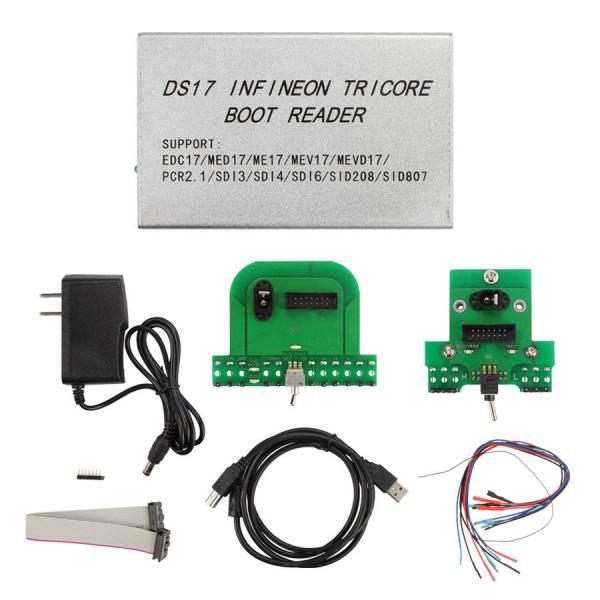

    Package including:

    1pc x DS17 Tricore Boot Reader
    1pc x USB Cable
    1pc x Power Adapter
    4pcs x Adapter and cables
